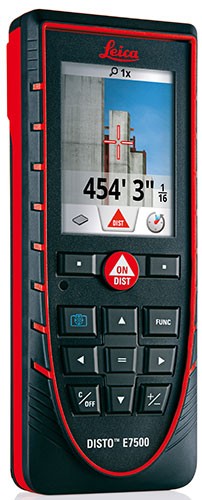

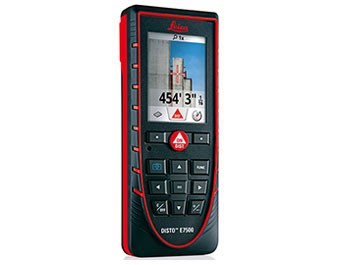

Disto E7500 Leica Laser Distance Meter

Product Description

Disto E7500 - reliable and precise outdoor measuring

Range 2in to 500ft
accuracy +/- 1/16 in

Smart Horizontal Mode

Digital point-finder

IP65 protection

Tough IP65 Protection

The Disto E7500 is protected against water, dust and shock with a IP65 protection class rating.

To obtain an IP65 rating, the case must be tight enough to provide complete protection from dust entering any of the electronic components.

It also can sustain water projected by nozzle against the enclosure from any direction without harmful effects after 3 minutes of continuous spraying.

Digital point-finder with zoom

disto E7500i display with digital pointfinder

The Disto E7500 interface is intuitive and modern. Your favorite functions can be assigned to a pair of selection keys for quick access with a single press. Integrated help guides you through each available function.

The E7500's outdoor display visibility includes 1x, 2x, and 4x digital zoom, even in bright sunny conditions you can easily find your target in the cross hairs on the display.

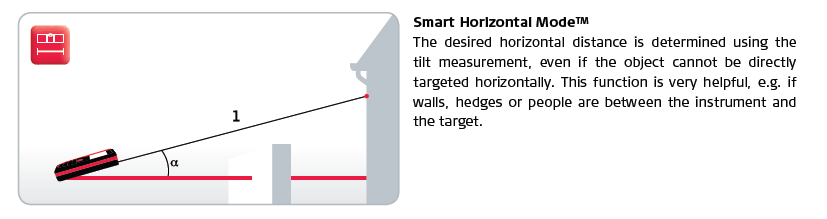

Smart Indirect Measurements

Thanks to the combination of distance and tilt measurements, you can determine the horizontal distance precisely - even over obstructions. This function is very helpful if
walls, hedges or people are between the instrument and
the target.

Smart Horizontal Mode

See All E7500 Functions

Proven Accuracy and Repeatability

The Disto E7500 by Leica Geosystems is compliant to ISO 16331-1, which is a new industry standard developed by an international committee. The range and accuracy of laser distance meters depend greatly on light conditions and how reflective the targeted surface is.

Many distance meters can achieve great results in a controlled laboratory environment, but let's face it, most measuring does not take place in the ideal environment. Leica worked with external experts to help develop and create a standard by which laser distance meters can be tested and compared with each other.

So, what does all of that mean? The Disto E7500 will perform to the specifications listed in real life working conditions.

Included with your E7500

Each Disto E7500 comes with all the necessary accessories:

High quality holster with belt loop
lanyard/hand-loop
2 AA batteries
User Manual and safety instructions on cd-rom
calibration certificate silver
quick start guide
protect card

You'll save time measuring right out of the box.

Learn to use your Disto E7500

Functions
	Distance Measurement (Range 2in to 500ft)
	Minimum/maximum measurement
	Area measurement
	Volume measurement
	Painter function
	Pythagoras functions (2-point only)
	Smart Horizontal Mode
	Stake out function
	Subtraction / addition
	Digital viewfinder
	Timer
	Multifunctional end-piece

Technical Data
Measuring Accuracy per ISO	+/- 1mm or ~ 1/16"
Range	550 ft
Measuring Units	0.000m, 0.0000m, 0.00m, 0.00ft, 0'00" 1/32, 0.0in, 0in 1/32
Digital Zoom Levels	1x, 2x, 4x
Tilt Sensor	360 °
Memory	30 measurements
Protection Class	IP 65 - Water jet protection and dust-tight
Batteries	Type AA 1.5v x 2 (included)
Measurements per set of batteries	up to 5000
Dimensions	5.6 x 2.28 x 1.14 in
Weight with Batteries	6.37 oz

Industry Leading Warranty

Leica Geosystems products fulfil the highest quality requirements to support you efficiently in your daily work on site. To give you even more security, we offer a three year warranty on all Leica Disto's.

Just register your device within eight weeks of the date of purchase and profit from an additional free one year warranty.

$499.00

More Information

UPC Code	7640110695364
Screen	Color - 2.4"
Warranty	3 Years
Bluetooth	No
Range	500ft
Accuracy	+/- 1/16 in
Laser Class	2
Continuous Measuring	Yes
Dust/ Water Protection	IP65
