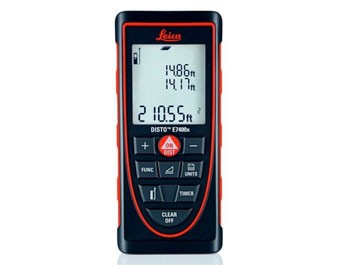

Leica Disto E7400X Laser Distance Meter X310 788472

Product Description

Disto E7400X - Robust Multi-functionality

Measuring range 2in to 265ft
accuracy +/- 1/16 in

360° tilt sensor with
smart horizontal mode

IP65 protection rating
from dust and water

Reinforced Housing

The precision measurement module and elements are protected by solid rubber and fiberglass reinforced housing.

The Leica DISTO E7400X is therefore shock-resistant and passes drop tests from up to 6ft height.

Tough IP65 Protection

The Disto E7400x is protected against water, dust and shock with a IP65 protection class rating.

To obtain an IP65 rating, the case must be tight enough to provide complete protection from dust entering any of the electronic components.

It also can sustain water projected by nozzle against the enclosure from any direction without harmful effects after 3 minutes of continuous spraying.

Smart Indirect Measurements

Thanks to the combination of distance and tilt measurements, you can determine the horizontal distance precisely - even over obstructions. With the help of the tilt sensor, you can also determine indirect heights. This function is very helpful if
walls, hedges or people are between the instrument and
the target.

Tilt Measurement

Smart Horizontal Mode

Height Tracking See All E7400X Functions

Multi-Function End Piece

The Disto E7400X end-piece makes it easy to measure from edges or corners
and the system automatically recognizes the point of reference.

Proven Accuracy and Repeatability

The Disto E7400X by Leica Geosystems is compliant to ISO 16331-1, which is a new industry standard developed by an international committee. The range and accuracy of laser distance meters depend greatly on light conditions and how reflective the targeted surface is.

Many distance meters can achieve great results in a controlled laboratory environment, but let's face it, most measuring does not take place in the ideal environment. Leica worked with external experts to help develop and create a standard by which laser distance meters can be tested and compared with each other.

So, what does all of that mean? The Disto E7400x will perform to the specifications listed in real life working conditions.

Included with your E7400X

Each Disto E7400X comes with all the necessary accessories:

High quality holster with belt loop
lanyard/hand-loop
2 AAA batteries
User Manual and safety instructions on cd-rom
producer certificate
quick start guide

You'll save time measuring right after you open the box.

Learn to use your Disto E7400X

Functions
	Distance Measurement (Range 2in to 265ft)
	Minimum/maximum measurement
	Area measurement
	Volume measurement
	Triangle function
	Room angle function
	Painter function
	Pythagoras functions
	Tilt measurement
	Smart Horizontal Mode
	Height tracking
	Stake out function
	Subtraction / addition
	Timer
	Multifunctional end-piece

Technical Data
Measuring Accuracy per ISO	+/- 1mm or ~ 1/16"
Range	265 ft
Measuring Units	0.000m, 0.0000m, 0.00m, 0.00ft, 0'00" 1/32, 0.0in, 0in 1/32
Protection Class	IP 65 - Water jet protection and dust-tight
Batteries	Type AAA 1.5v x 2 (included)
Measurements per set of batteries	up to 5000
Dimensions	4.8 x 2.17 x 1.22 in
Weight with batteries	4.98oz

Industry Leading Warranty

Leica Geosystems products fulfil the highest quality requirements to support you efficiently in your daily work on site. To give you even more security, we offer a three year warranty on all Leica Disto's.

Just register your device within eight weeks of the date of purchase and profit from an additional free one year warranty.
TEST

$279.00

More Information

UPC Code	7640110693278
Screen	Monochrome (Illuminated)
Warranty	3 Years
Bluetooth	No
Range	265ft
Accuracy	1mm
Laser Class	2
Continuous Measuring	Yes
Dust/ Water Protection	IP65
